Universal Thermostatic Oil Cooler Sandwich Plate Adapter - High-Quality

Universal Thermostatic Oil Cooler Sandwich Plate Adapter - High-Quality With Adapters (M20x1.5 & 3/4-16).

If you're looking to install some gauges or a turbo oil feed into your car, these sandwich plate adapters are the perfect way to get the job done!

These specific adapters had reliability and quality in mind for their production. They contain two 1/8NPT side-ports to allow mounting of pressure and temperature sensors, and two AN10 out ports to ensure sufficient flow to your oil lines. They also feature a newly designed flat rubber o-ring design to help ensure no leaks and a reliable seal. Two adapter nuts for your oil filter are also supplied.

They also feature a built-in thermostat to ensure your oil is still able to get up to temperature, which opens at 80 degrees.

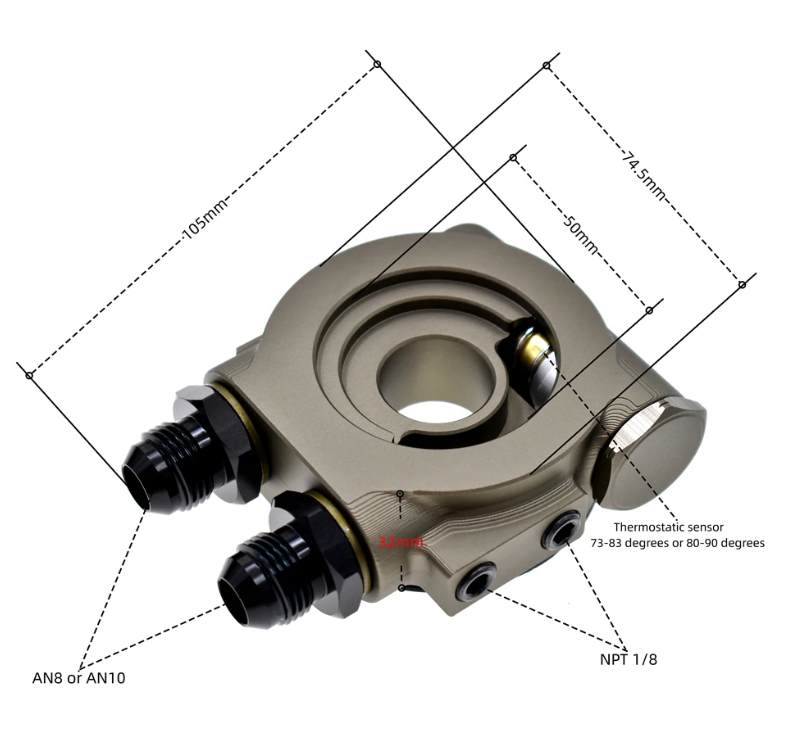

Dimensions & Specifications:
 - Material: Aluminium
 - Thermostat Opening: 80 Degrees
- Inlet Diameter: 10AN
- Outlet Diameter: 10AN
- Bypass port mounting nut dimensions: 3/4-16 UNF // M20 x 1.5
- Sensor Insert: 2x 1/8NPT

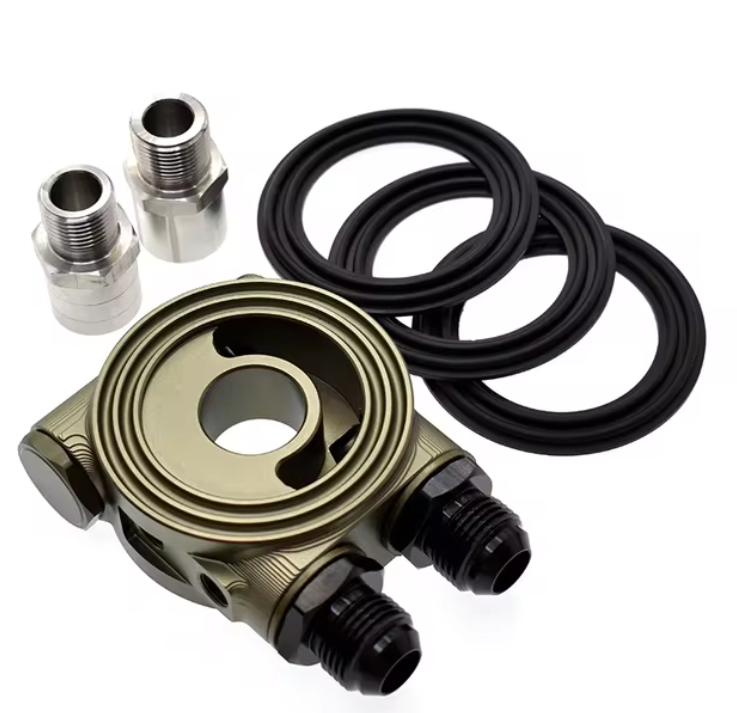

Package Contents:

- 1x Oil Sandwich Plate Adapter
- 2x 1/8NPT Block Off Fittings

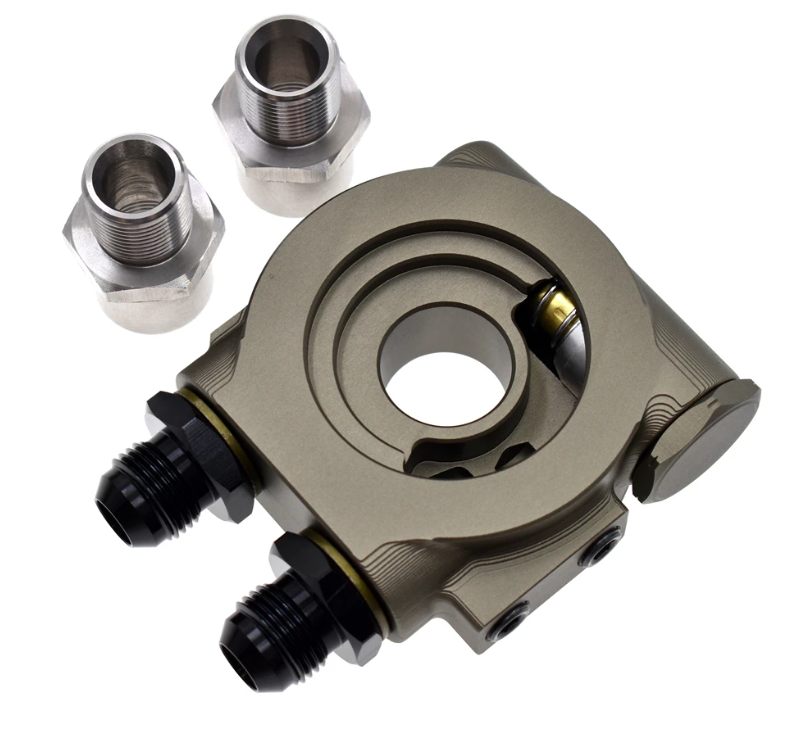

- Thread Adapters: M20x1.5 & 3/4-16 (3/4 NPT)
 - 3x Replaceable rubber O-Ring Gaskets
