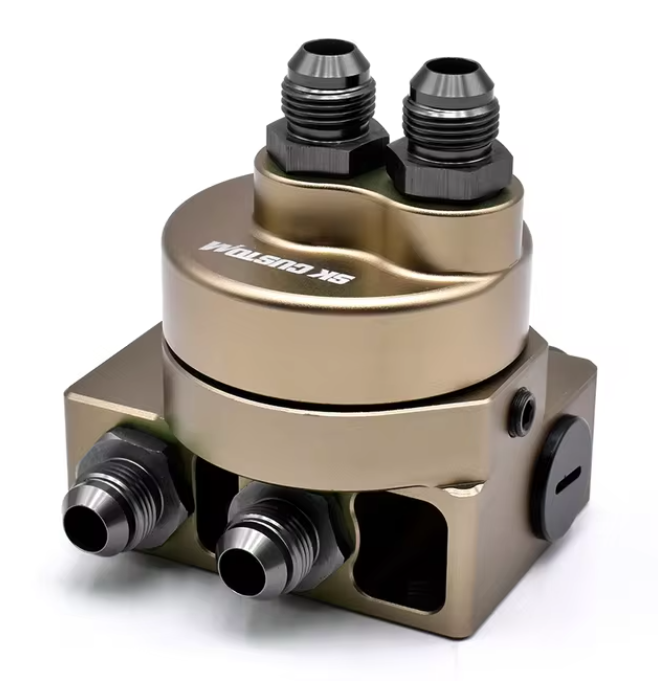

Universal Remote Oil Filter Thermostatic Adapter - High Quality

Universal Remote Oil Filter Thermostatic Adapter - High Quality (M20 x 1.5)

Are you looking for a solution to remote-mount the oil filter in your car and potentially add an external oil cooler? Look no further! These specific adapters had reliability and quality in mind for their production. They contain two 1/8NPT side-ports to allow mounting of pressure and temperature sensors, and utilise AN10 ports to ensure sufficient flow to your oil lines.

They also feature a built-in thermostat to ensure your oil is still able to get up to temperature. This thermostat won't open full-flow to your external oil lines (e.g. to your oil cooler) until this temperature is reached.

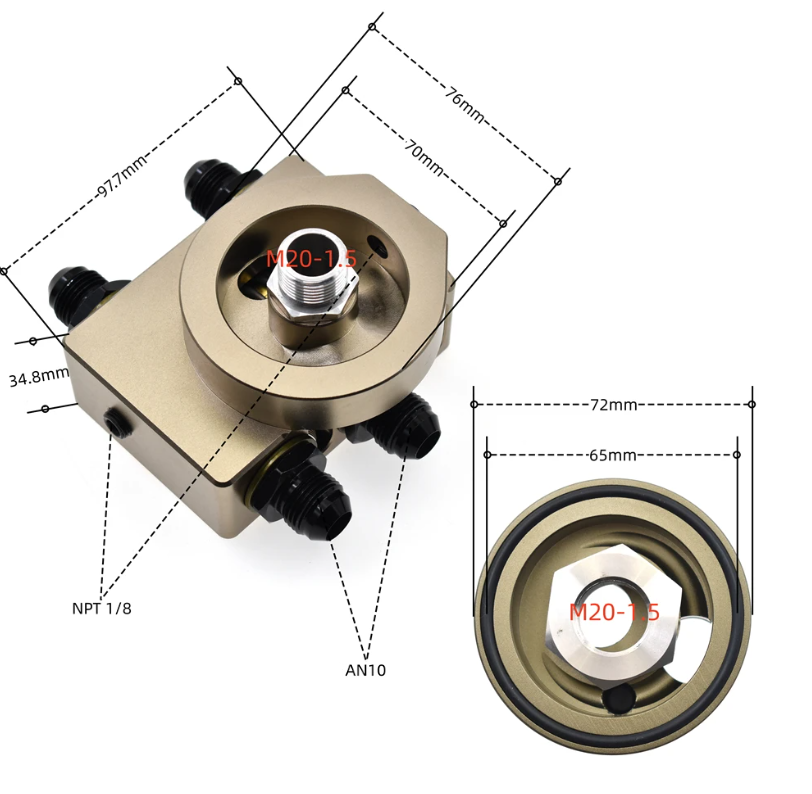

Dimensions & Specifications:
- Material: Aluminium
- Thermostat Opening: 80 Degrees
- Inlet & Outlet Diameters: 10AN
- Bypass port mounting nut dimensions: 3/4-16 UNF // M20 x 1.5
- Sensor Insert: 2x 1/8NPT

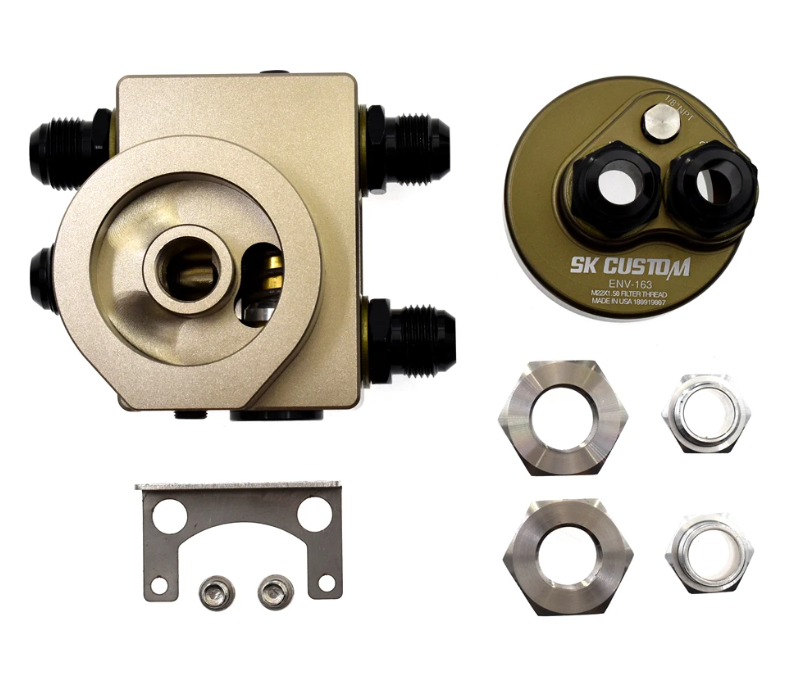

Package Contents:

- 1x Oil Filter Sandwich Plate-Block
 - 1x Oil Filter Remote Mounting Block
 - 1x Remote Mounting Block Mount
 - 2x 1/8NPT Block Off Fittings
- Oil Filter Thread Adapters: M20x1.5
 - 3x Replaceable rubber O-Ring Gaskets
