Maxx ECU

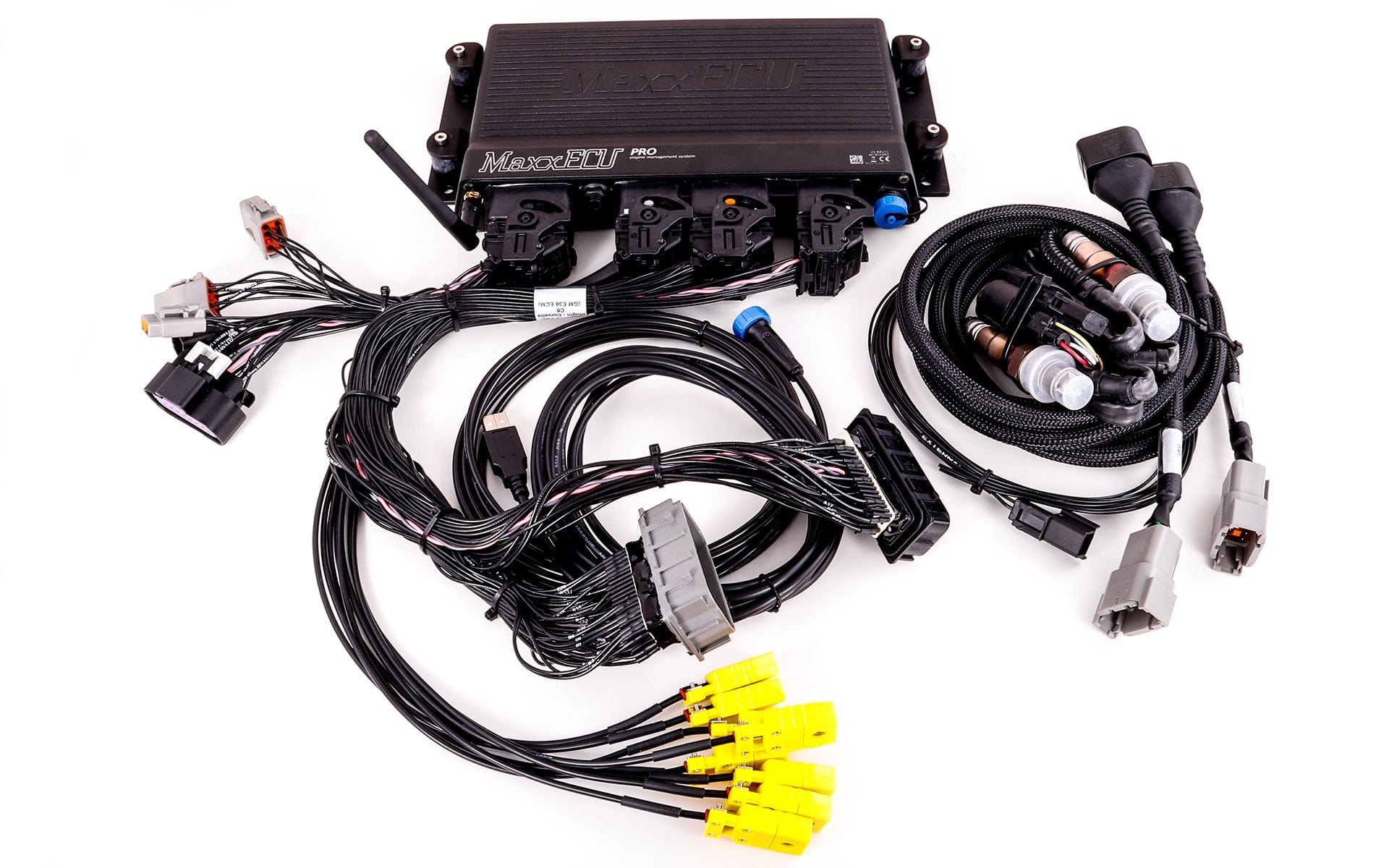

GM Corvette C6 (E38 ECM) MaxxECU PRO Plugin EXTRA MAXX1962

GM Corvette C6 (E38 ECM) MaxxECU PRO Plugin EXTRA MAXX1962

Regular price $4,086.96 NZD
Regular price $4,086.96 NZD Sale price $4,086.96 NZD
Sale Sold out
Taxes and shipping calculated at checkout.
Part Number

GM Corvette C6 (E38 ECM) MaxxECU PRO Plugin EXTRA MAXX1962

MaxxECU PRO is a product developed from the ground up to be flexible, reliable and fast. MaxxECU gives the user complete engine control!

Built-in MAP-sensor for boost pressure up to 3 bar (400Kpa)
Super fast and reliable USB communication between ECU and PC
MDash Android app over bluetooth
Injectors can be replaced with optional high or low impedance
No change in the vehicle's original system needs to be done
Can be upgraded with additional connectors to measure up to 12 TYPE-K sensors

Target Engines of MaxxECU PRO
All 1-12 cylinder engines (4-stroke)
Up to 12 cylinders fully sequentially
Up to 12 cylinders in wasted spark
MaxxECU PRO inputs
Intake air temperature sensor (IAT)
Coolant temperature sensor (CLT)
Throttle position sensor (TPS)
Dual lambda (WBO) sensor. Uses sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2 and 4.9
2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference
6 temperature sensors. Can be used for logging or control of additional functions
16 0-5V inputs. Can be used for additional sensors such as measurement of fuel / oil pressure
10 digital inputs used for example speed sensors (4 can use VR-sensors) or switches
Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost
12 EGT TYPE-K/N inputs with separate harness (up tp 1200C/2200F+

MaxxECU PRO outputs
16 peak/hold injector outputs. 1-2 high or low impedance injectors per output. 8A per output
12 ignition outputs. 5V signals to drive ignition modules, CDI units / coils
30 extra outputs for additional features. Can be adjusted to control virtually anything like fuel pumps, idle valves. GPO 1-8 (2A), GPO 9/10 (5A), GPO 11-14(2A), GPO 15-23 (12V sourcing, 4A), GPO 23-30 (1.5A)
Dual E-Throttle support

MaxxECU PRO technical
CAN bus for expansion modules, OEM vehicle CAN, OBDII
USB communication for tuning with MTune
Bluetooth for connecting to mobile devices with MDash
8MB memory for internal logging, up to 1000Hz
Supply voltage 8-22V
ARM Cortex-M3 120MHz main processor. Three extra processors to handle the triggers, injectors and EGT
Resolution on ignition: 0.1 degrees
Resolution on injectors: 0.001 ms
Updates the fuel and ignition calculations 2000 times per second
The fastest PC communication on the market
50Hz sampling rate on all EGT inputs
1000Hz sampling rate on all analog inputs
Weight: 1137g
252x180x40mm excluding protruding connectors
Built-in accelerometer up to 8G
Waterproofed aluminium case with shock absorbers
